Sapphire GPRO X080 (RX 6700) anyone try add video output ?

Recommended Posts

I asking because I can get myself used ones for 1/3 price of used Rx 6600xt.

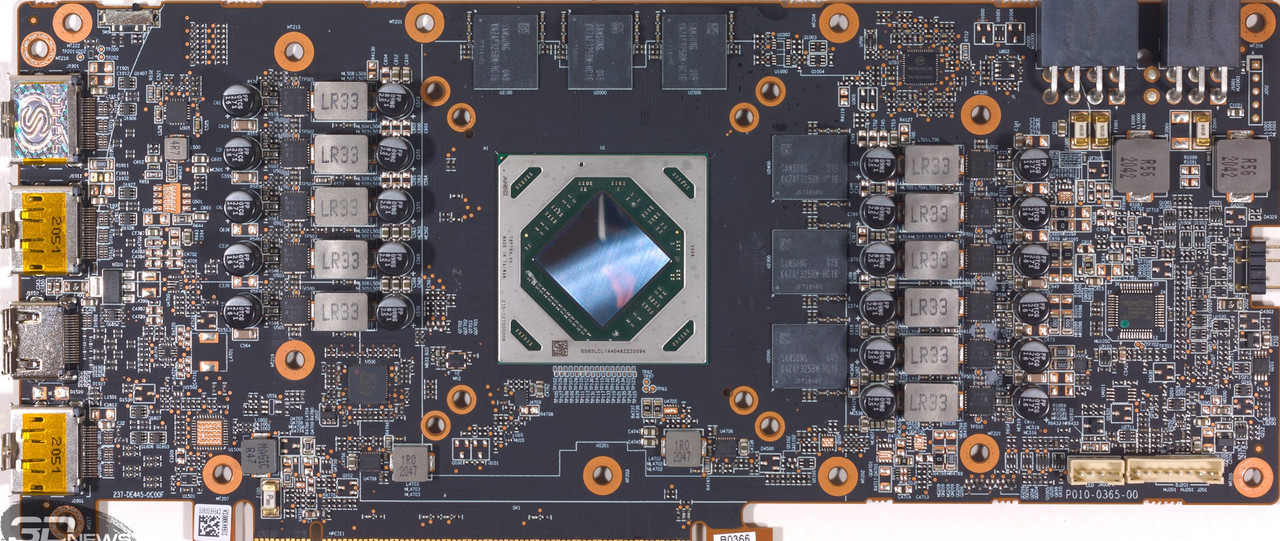

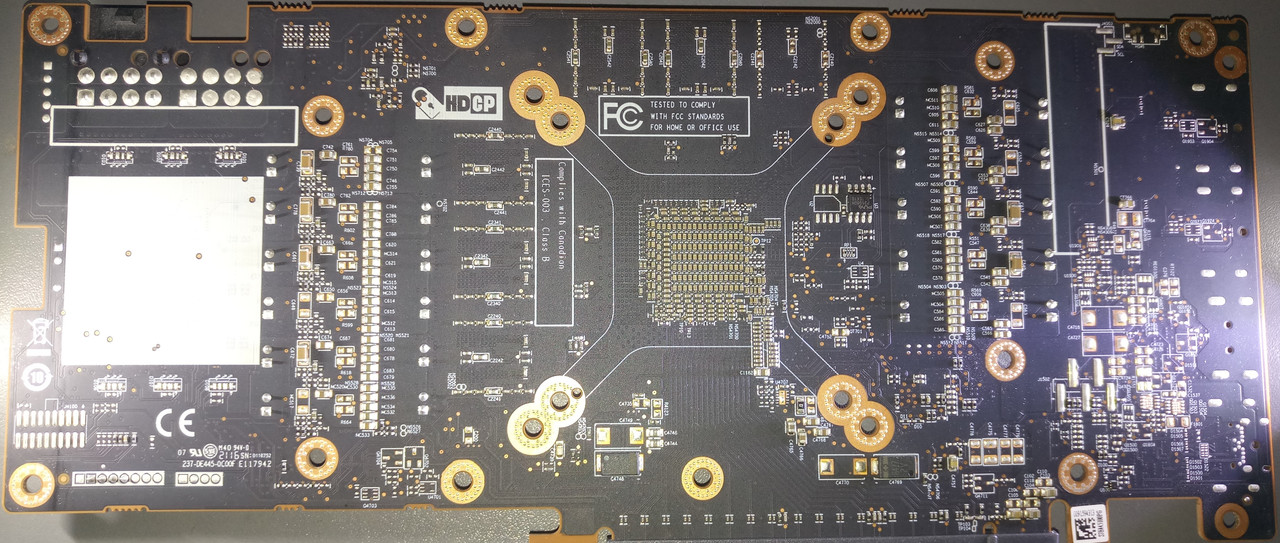

From photo their looks like Sapphire RX 6700 10Gb but missing video outputs.


I have some experience with soldering, I only concern about what smd parts to gets and if I can Flash Bios on it ?

Any one know list of needed smd parts caps/ resistors for HDMI and Dispaly ports ?

  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...
  • 2 months later...


GPU chip have laser off sense pin for detection if monitors is plugged on all ports, I know because I put all smd *( even freaking 0201) and display ports on board and not worked and only after this I notice it I been fooled due all data signal pins are still connected and have correct resistance values :/

Link to comment
