Kingston HyperX blu PC3-12800 8GB Kit

[sumonpathak]

Rewrite of the review i did recently of this kit..



Presenting Kingston Hyper X Blu 1600Mhz 8GB kit (P/N:KHX1600C9D3B1K2/8GX ).

The kit is stated as "Extreme Gaming Memory for Overclocking and Gaming Enthusiasts",lets see how extreme it is..shall we?



First up a screenshot of the SPD at stock.





As we can see the kit is XMP ready.So with an Intel system setting up wont be a problem.

Please continue to next page for more.







Let spice up the review with some pics of the kit and the ram itself..shall we?













































With the simple themed design this kit would look good on any system.



Recently lots of people was asking me about the test system i use so though i would give a brief overview on the system i use in here for testing out.

CPU

Intel Core i5 2500K

Motherboard

Asus P8Z68 Deluxe

Ram

Kingston 1600Mhz 8GB DDr3

Storage

Western Digital 320GB HDD (WD320AAKX)

Video Card

Sapphire Radeon HD 7850

Cooling

Noctua NH D14 with GT 1850 fans

Case

Ghetto made bench table

Power supply Unit

Corsair AX 1200W

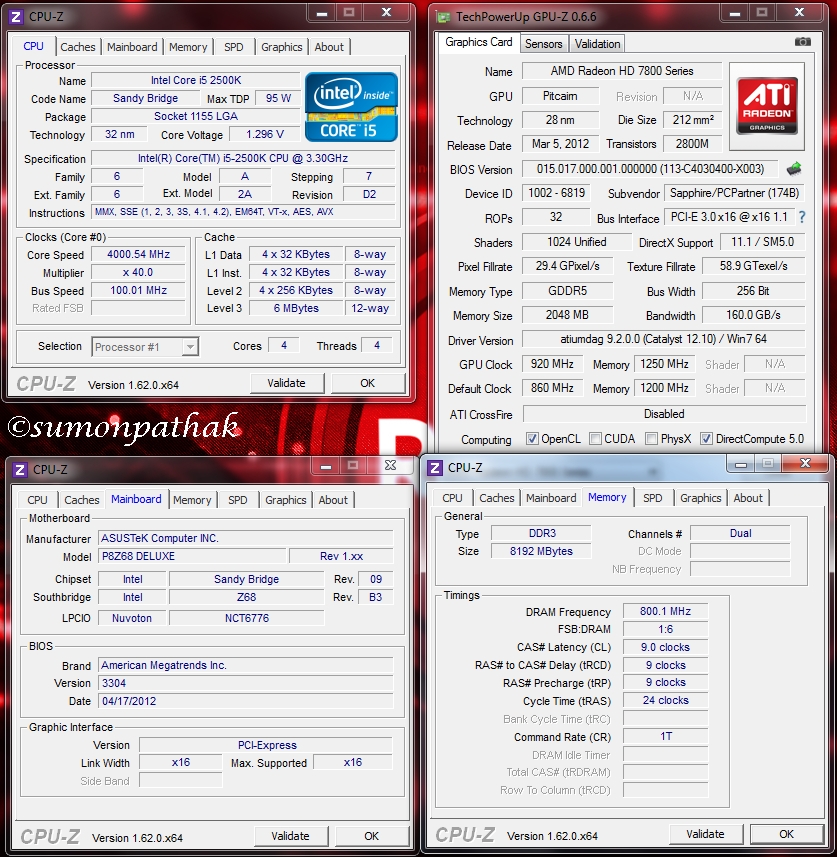

System Settings









Lets see what the kit is capable of at stick..then we will move on to overclocking.

The other kits were included only to compare stock performance.



1. Super Pi 1.5

2. Wprime 1.55

3. Aida 64 Memory Benchmark suite




All the runs were made in a freshly installed windows Seven Ultimate SP1 Installation with reboots in between every benchmark.An average of three runs were taken into consideration to rule out margin of error as much as possible.



Super PI 1.5

(lower times are better)

Super PI is a computer program that calculates pi to a specified number of digits after the decimal point - up to a maximum of 32 million. It uses Gauss-Legendre algorithm and is a Windows port of the program used by Yasumasa Kanada in 1995 to compute Pi to 32Million digits











Super PI is extremely sensitive to ram timings,specifically the 32M computation.We can see the Kingston kit is beating its counterpart easily.





Wprime 1.55

(lower times are better)



wPrime uses a recursive call of Newton's method for estimating functions, with f(x)=x2-k, where k is the number we're sqrting, until Sgn(f(x)/f'(x)) does not equal that of the previous iteration, starting with an estimation of k/2. It then uses an iterative calling of the estimation method a set amount of times to increase the accuracy of the results. It then confirms that n(k)2=k to ensure the calculation was correct. It repeats this for all numbers from 1 to the requested maximum.

















Aida 64 memory Benchmark

(higher is better in case of Memory bandwidth,lower is better in case of latency)

AIDA64 Extreme Edition is a streamlined Windows diagnostic and benchmarking software for home users.

Memory bandwidth benchmarks (Memory Read, Memory Write, Memory Copy) measure the maximum achiveable memory data transfer bandwidth. The code behind these benchmark methods are written in Assembly and they are extremely optimized for every popular AMD and Intel processor core variants by utilizing the appropriate x86, MMX, 3DNow!, SSE, SSE2 or SSE4.1 instruction set extension.

The Memory Latency benchmark measures the typical delay when the CPU reads data from system memory. Memory latency time means the penalty measured from the issuing of the read command until the data arrives to the integer registers of the CPU.





Again the Kingston kit wins across the board.

So on stock the kit performs nicely.lets move on to overclocking.







For the overclocking part my methodology was like this:



• Boot using the memory multi given on the board if it boots at all.

• Run Aida 64 Suite for stability along with 15 minutes LinX

• Take validation




Now the P8Z68 deluxe has memory support up to 2400Mhz so clocking ram is no problem provided the IMC of the processor is good.



Lets see how far they have gone.

First up the 1600Mhz frontier:

tried a little tightening on the latency,couldn't boot below Cl 8-9-8-24 1.5V







So my adventure stopped there..sadly.



Now the next stop was 1866 Mhz.

Memory Multi..check.

Vdimm to 1.65V..check..and there she boots..



So the some must say the ram boots at 1866..big deal...but there's more..

Vdimm 1.65V..check...

timings..a little loose..check







So there you have it...a puny little "good-looking" ram clocked at 1600C9 doing 21333C11 at stock volts.

Good job Kingston..mind telling me the magic you used under there?



So..there goes my OC adventures..here's a few graphs about the performance scaling on difference speed.

Super Pi 1.5

(lower=better)







Wprime 1.55

(lower=better)









Don't worry about the scores too much..since i haven't gave any time to tune for efficiency.

Now the Aida 64 Memory Benchmarks

Aida memory Bandwidth





Aida Memory latency





SO there you have it..

a nice little kit that can kick some serious butt.





Well...when i had this kit in my hand..i said "thou shall not pass my torture test".

But at the end of the day the kit won and is laughing at my face for underestimating it.



This little kit clocked at 1600C9 can do wonders as we have already seen and as far as my sources go it can even do 2400Mhz on better IMC's.



Time for Gskill and Corsair to move over.



Signing out

Sumon Pathak



this is also posted at

http://www.ocfreaks.com/kingston-hyperx-blu-pc3-12800-1600mhz-8gb-kit-review/



feedback's are appreciated



also i have the kits with me..u need any specific benchmarks let me know

Edited December 11, 2012 by sumonpathak

[Splave]

alot of work youve done

[TaPaKaH]

these are most likely Hynix CFR

[Blue Storm]

If HyperX Blu has same ICs as HyperX Blu Red it has Micron D9PFJ;)





But my kit was much worse with higher frequencies. 2133 MHz no way, 1866 MHz 10-11-10-27-1T, but 1600 MHz 7-9-7-22-1T what is quite nice for such a cheap kit. All with 1.65 V. So it's possible that HyperX Blu have different ICs than HyperX Blu Red.

[marmott]

Kingston uses a lot of chips, it's tricky (not to say impossible) to always stay with the same ICs.

[sumonpathak]

model no is same actually

but i think the chips are different



also ny crappy SB IMC can clock 16GB of these to 2200

[Don_Dan]

If HyperX Blu has same ICs as HyperX Blu Red it has Micron D9PFJ;)



Nope, it says 08 on your label which means it's Micron, on his label it says 32 which means it's Hynix.

Edited December 14, 2012 by Don_Dan
Sorry. -.-

[Blue Storm]

If 08 means Hynix I don't know why it has Micron?!

[marmott]

According to Sam, 08 = Micron and 32 = Hynix.



http://www.forum.ocxtreme.org/showpost.php?p=90133&postcount=12

[Don_Dan]

If 08 means Hynix I don't know why it has Micron?!



Sorry...

[Blue Storm]

I thought it's only typo:DMicron looks a little better with lower frequencies and Hynix with higher frequencies...and both kits looks good with their price:)
