Wizerty Posted November 19, 2014 Share Posted November 19, 2014 Hi, Some month ago I made a new ram pot for RAW MHZ (single side mem). Easy mount, fast and without TIM between pot and heatspreader It's 100% home made (idea, drawing, machining, testing..). Feel free to use this drawing on your own, but please "no commercial sell" with my drawing. Red part = mem slot / green = PCB / Black = IC / Blue part = Pot + HS / Grey = mounting plate Quote Link to comment Share on other sites More sharing options...
Wizerty Posted November 19, 2014 Author Share Posted November 19, 2014 (edited) I don't have expensive machine, all is made with manual milling Edited November 19, 2014 by Wizerty Quote Link to comment Share on other sites More sharing options...
Wizerty Posted November 19, 2014 Author Share Posted November 19, 2014 (edited) Quality check : Edited November 19, 2014 by Wizerty Quote Link to comment Share on other sites More sharing options...

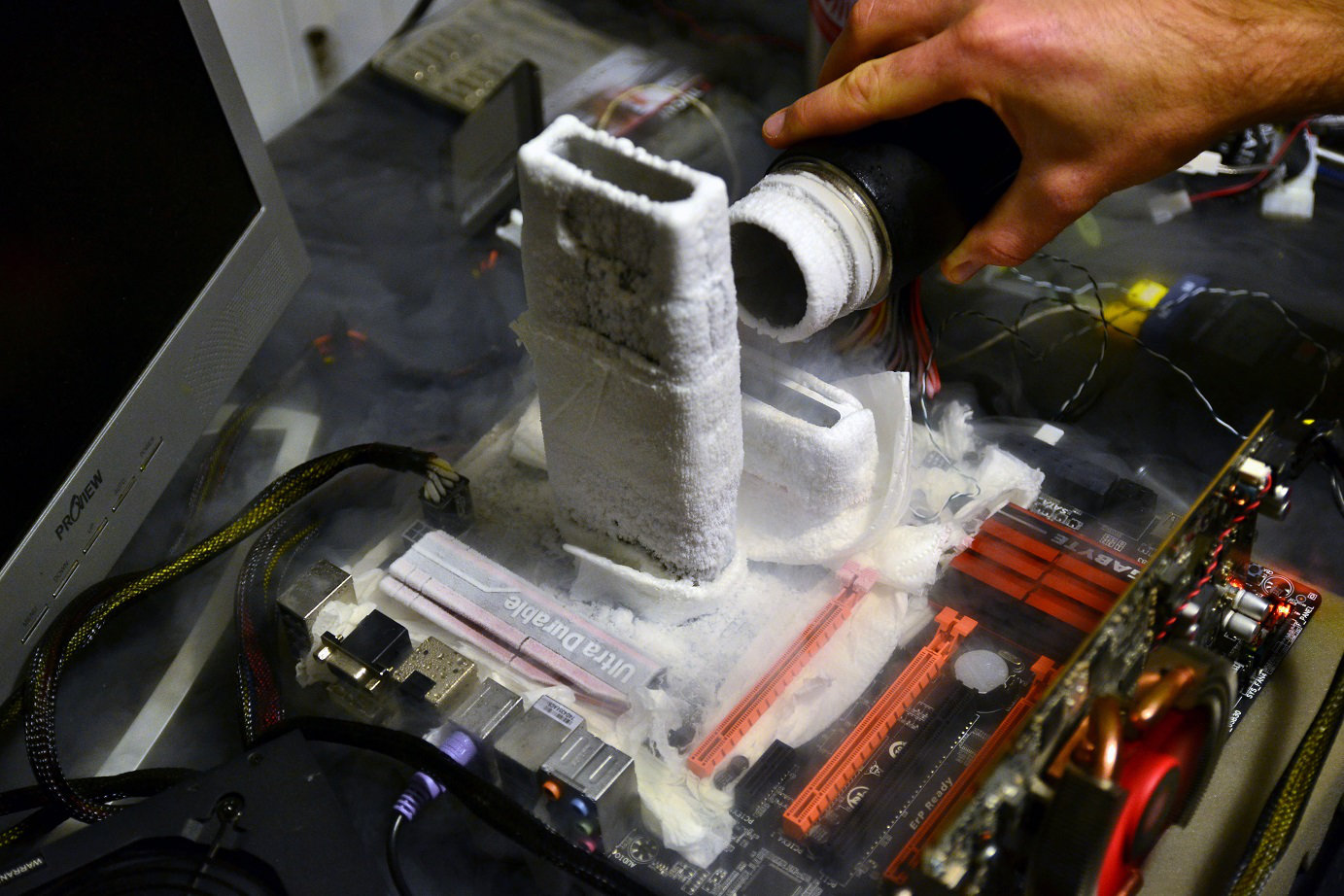

Wizerty Posted November 19, 2014 Author Share Posted November 19, 2014 (edited) Action : I have tested only 6 different stick (3kit) since I have it - Corsair KIT#1, best stick -> 2157Mhz on M6I ( a friend kill it some month after this screen ) - Kingston best stick -> 2080Mhz on M6I (reviews on cold http://www.cowcotland.com/articles/1581/wizerty-oc-memoire-kingston-hyperx-predator-2800-c12.html ) - New Corsair KIT#2, best stick -> 2155Mhz on z97x soc force LN2 link will be update Edited November 19, 2014 by Wizerty Quote Link to comment Share on other sites More sharing options...
Wizerty Posted November 19, 2014 Author Share Posted November 19, 2014 (edited) res4 Edited November 19, 2014 by Wizerty Quote Link to comment Share on other sites More sharing options...
Poorya_lion Posted November 19, 2014 Share Posted November 19, 2014 Awesome job Wiz !!! Most important part is the size ... Really lovely POT. Quote Link to comment Share on other sites More sharing options...
suzuki Posted November 19, 2014 Share Posted November 19, 2014 It really looks nice and the result are impressive ,good job wiz ! Quote Link to comment Share on other sites More sharing options...
MaJ0r Posted November 19, 2014 Share Posted November 19, 2014 Simply awesome man! Quote Link to comment Share on other sites More sharing options...
Alex@ro Posted November 19, 2014 Share Posted November 19, 2014 Great job man,can you consider making a new pot with support for 2 dimms with space only for regular boards(expect impact ofc) ?I can imagine something like that with a solid copper base and tall size would be king for ln2 ram benching (32M and XTU ) If you do plan this consider me a customer Quote Link to comment Share on other sites More sharing options...
dx4picco Posted November 19, 2014 Share Posted November 19, 2014 coper is too expensive regarding the little gain performancewise. Al isnt really worse for a ram that doesnt heatup a lot. My point, buildig this pot is too much hours of handwork to sell it also. Quote Link to comment Share on other sites More sharing options...
Strat Posted November 19, 2014 Share Posted November 19, 2014 Great job man,can you consider making a new pot with support for 2 dimms with space only for regular boards(expect impact ofc) ?I can imagine something like that with a solid copper base and tall size would be king for ln2 ram benching (32M and XTU ) If you do plan this consider me a customer He's done this already Quote Link to comment Share on other sites More sharing options...
Wizerty Posted November 19, 2014 Author Share Posted November 19, 2014 Great job man,can you consider making a new pot with support for 2 dimms with space only for regular boards(expect impact ofc) ?I can imagine something like that with a solid copper base and tall size would be king for ln2 ram benching (32M and XTU ) If you do plan this consider me a customer Like this one ? http://forum.hwbot.org/showthread.php?t=80504 Trust me, you don't need copper. Heat spreader are really thick so it's as good as cooper, and without thermal interface between pot and HS you have "same" T° everywhere. This kind of pot with cooper will be TOO heavy... then you will need to much LN2 to cool it down, and to much time to heat it up in case of CB/CBB -------- I make it for FUN, to used pot I made on my own. It take me 4-5 hour to make one piece with manual milling machine + need to buy tool... It will be really expensive, and I won't be allowed to use machine if I sell product, I'm only allowed to use it one or two time a year. This is not my job With CNC I think it will be really fast to produce it, but I don't have access to this. Quote Link to comment Share on other sites More sharing options...
Guest Bullant Posted November 19, 2014 Share Posted November 19, 2014 Looks good man,I like how the HS is part of the pot I'm sure it gives you great cold transfer,I'm guessing your getting really good cold temps on your memory's Your dual memory pot is also good design with how memory's slot up into the pot giving you max cold temps to your memorys Quote Link to comment Share on other sites More sharing options...
Xtreme Addict Posted November 19, 2014 Share Posted November 19, 2014 Great job Quote Link to comment Share on other sites More sharing options...
Wizerty Posted November 20, 2014 Author Share Posted November 20, 2014 Looks good man,I like how the HS is part of the pot I'm sure it gives you great cold transfer,I'm guessing your getting really good cold temps on your memory's Your dual memory pot is also good design with how memory's slot up into the pot giving you max cold temps to your memorys Exactly V1 is also great, but need time to mount it. And every time you have to apply/clean TIM on IC... that's boring. V2 is great and easy to use Quote Link to comment Share on other sites More sharing options...
Hiwa Posted November 22, 2014 Share Posted November 22, 2014 Looks good, like the original idea. Quote Link to comment Share on other sites More sharing options...
Strong Island Posted November 25, 2015 Share Posted November 25, 2015 Exactly V1 is also great, but need time to mount it. And every time you have to apply/clean TIM on IC... that's boring. V2 is great and easy to use I know this was from last year but it's so awesome I had to comment, what a beautiful pot you built, it looks so professional. I love the design and never saw anything like it. Really cool idea and execution. Quote Link to comment Share on other sites More sharing options...
Wizerty Posted November 26, 2015 Author Share Posted November 26, 2015 Thank you for your kind words Quote Link to comment Share on other sites More sharing options...
