re test of L643G240, delid, liquid metal, water 18c, VID 1.152v LLC6



have had a quick LN2 test but no screens, took an age to figure voltages, requires very low internal volts! best mount i had cracked probably due to the hours of finding right settings, remounted several times but delta was crap 35c+ still managed upto 6.7g R15, then board had had enough, so once all sorted it should be circa 6.8g, should be able to re-test this week sometime



50

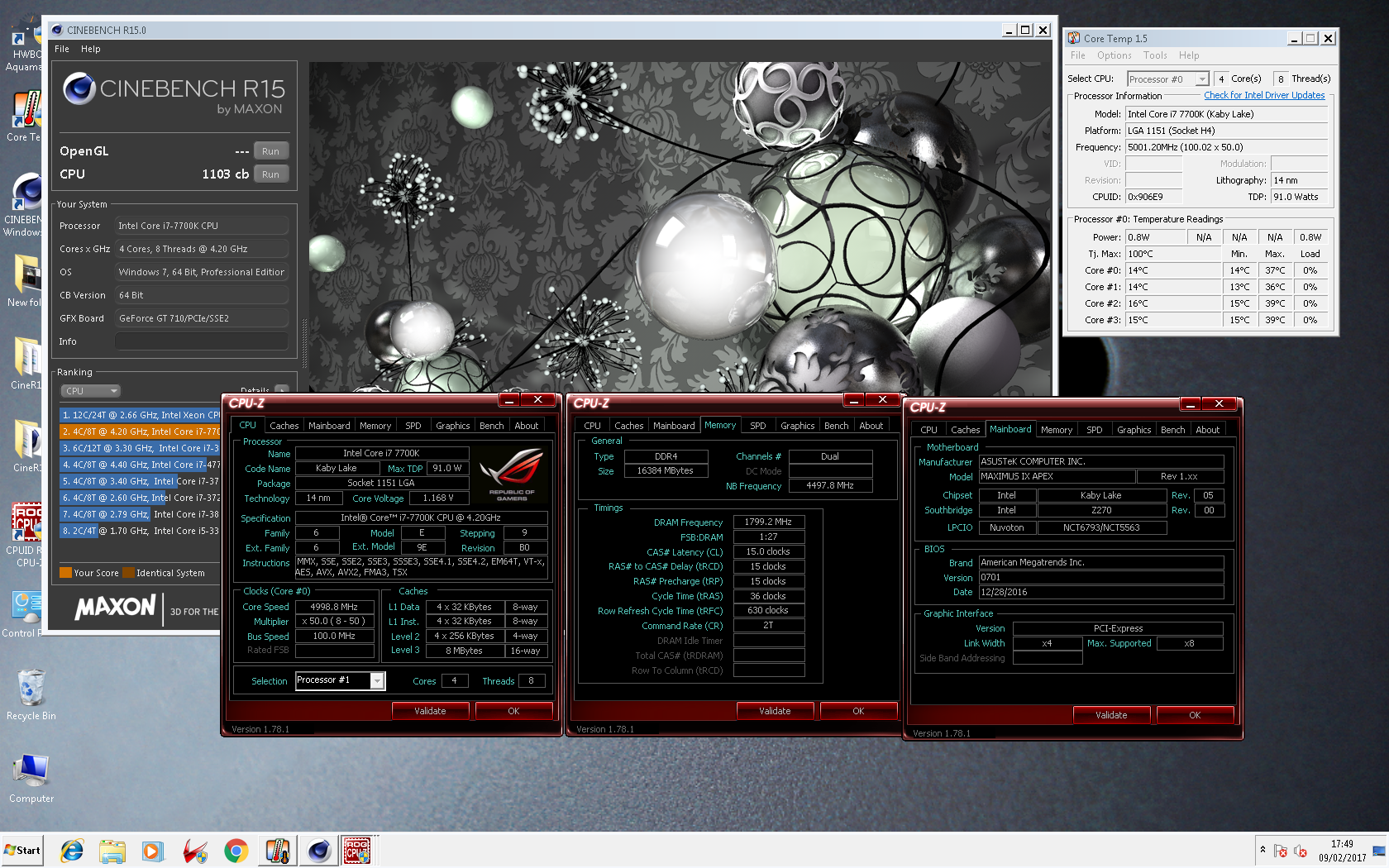

50_zpsxm8io2mn.png~original

51

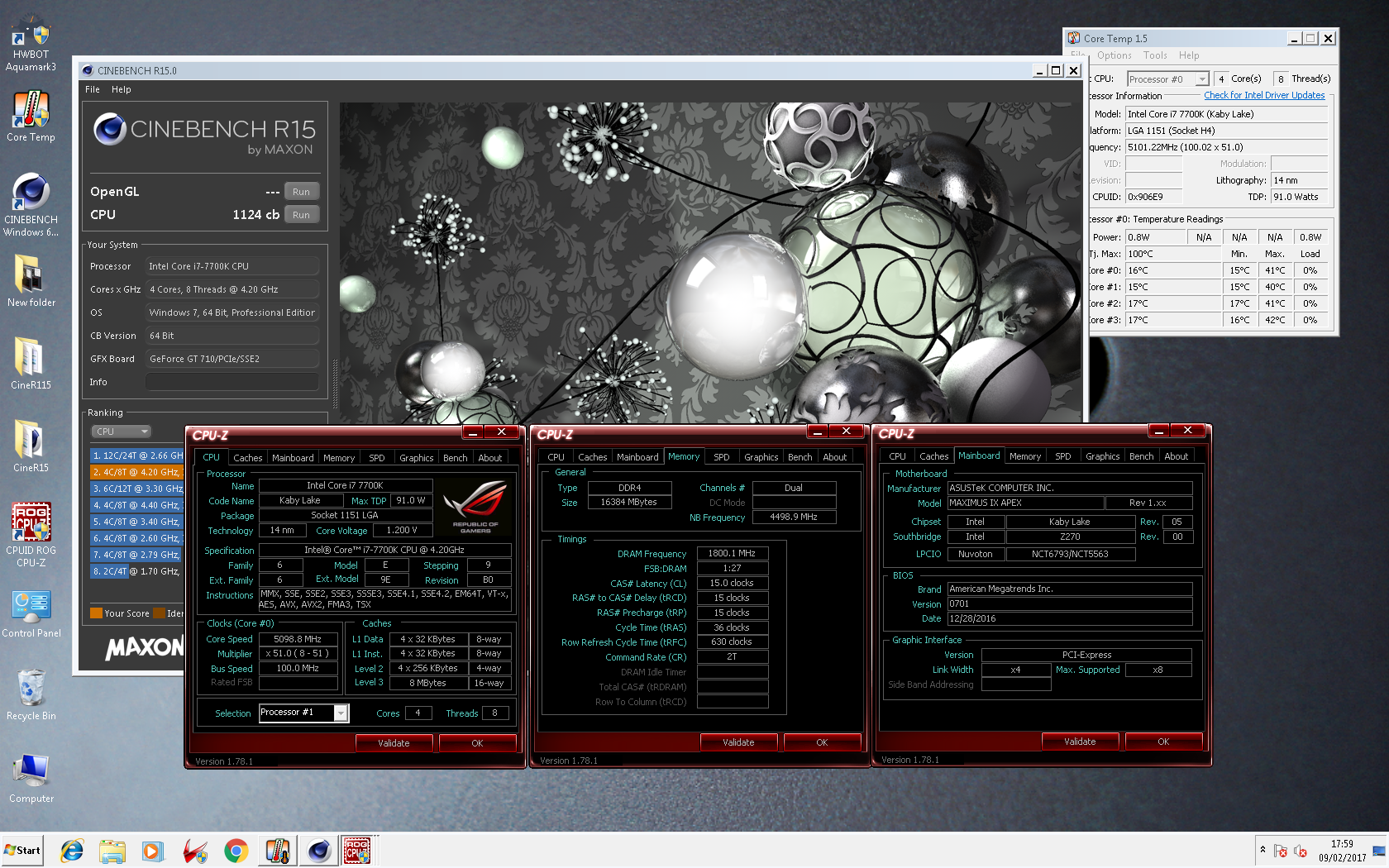

51_zps87xrvzti.png~original

52

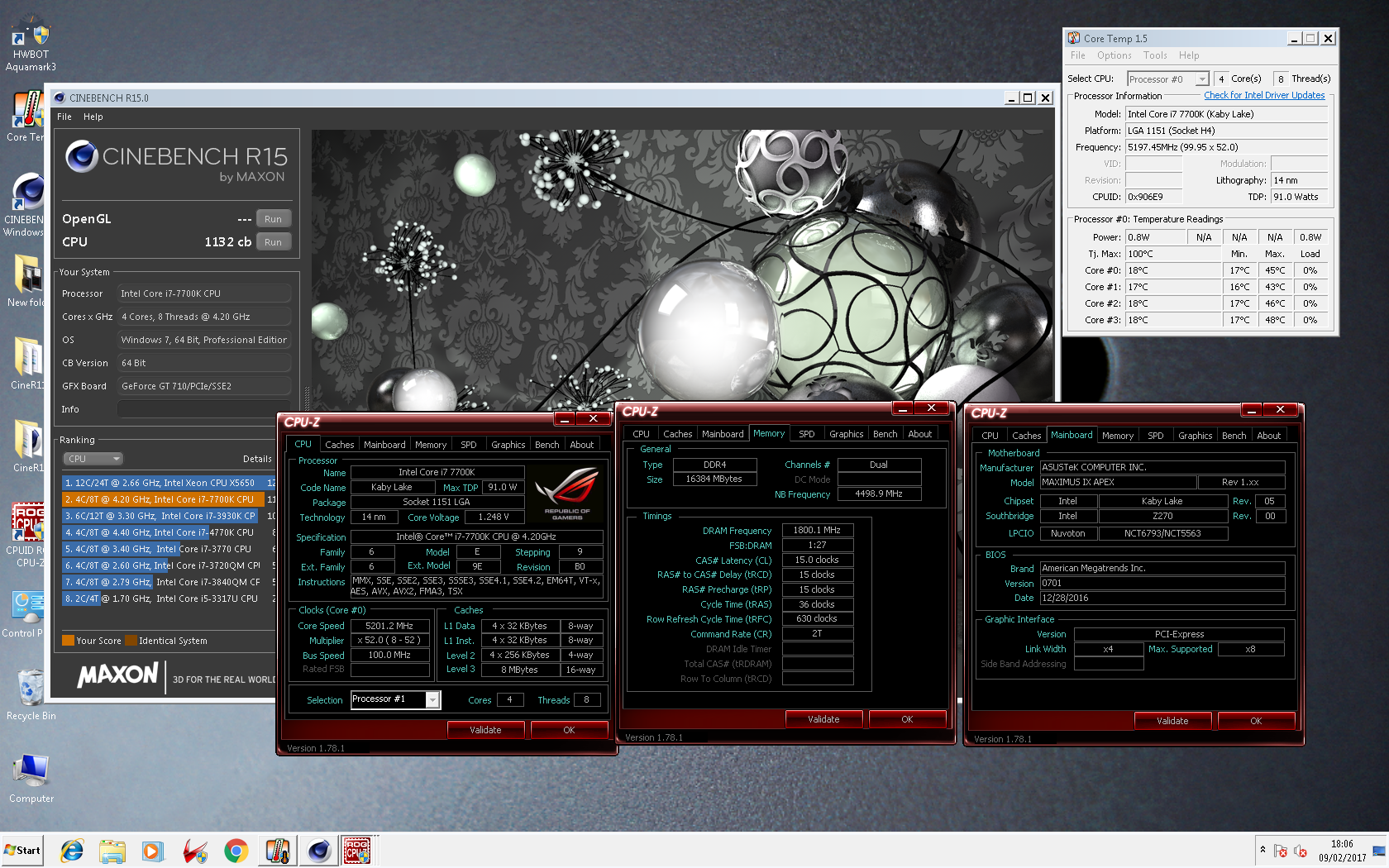

52_zpsfka1kkth.png~original

53

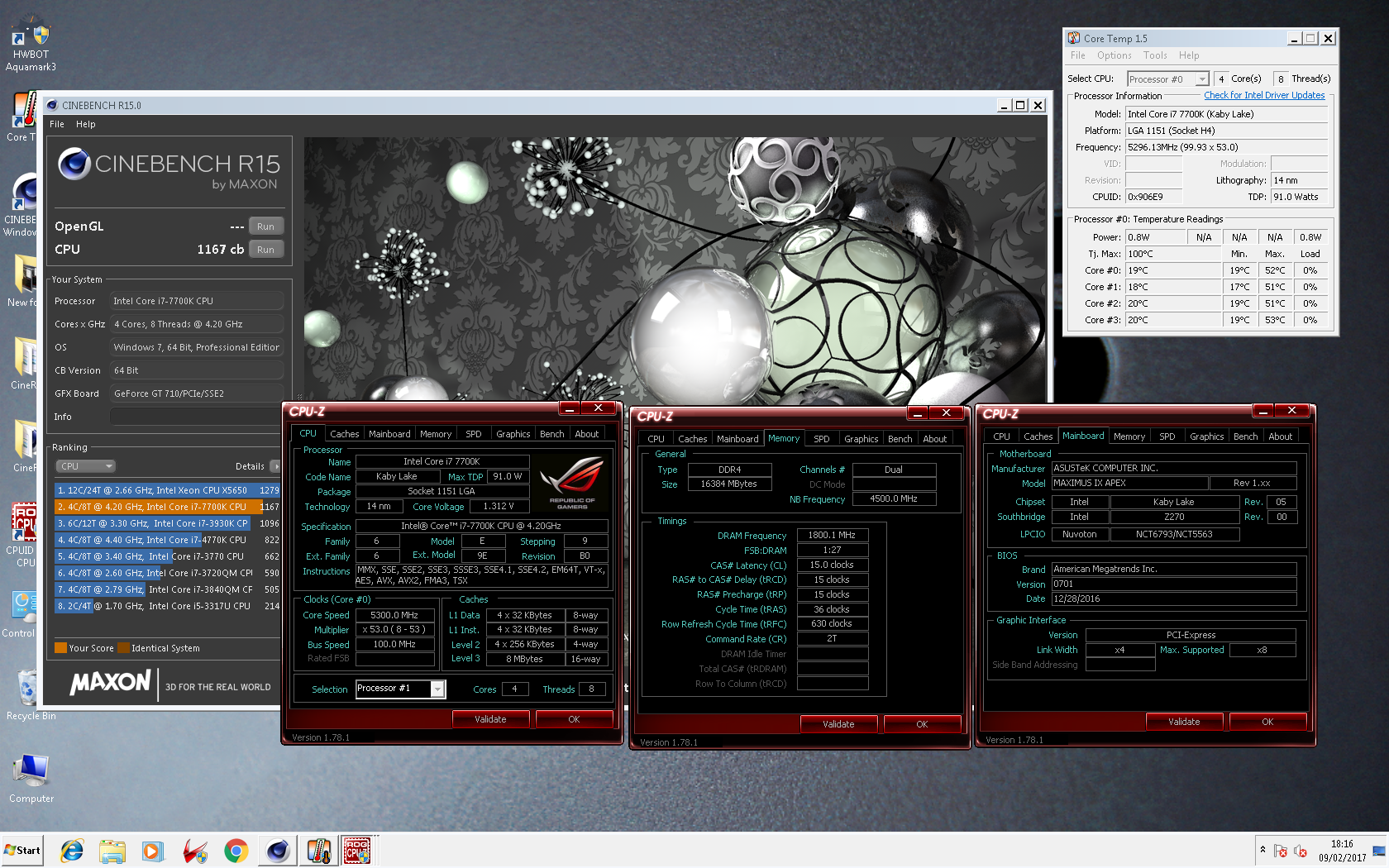

53_zpsyg4hu4p2.png~original

54

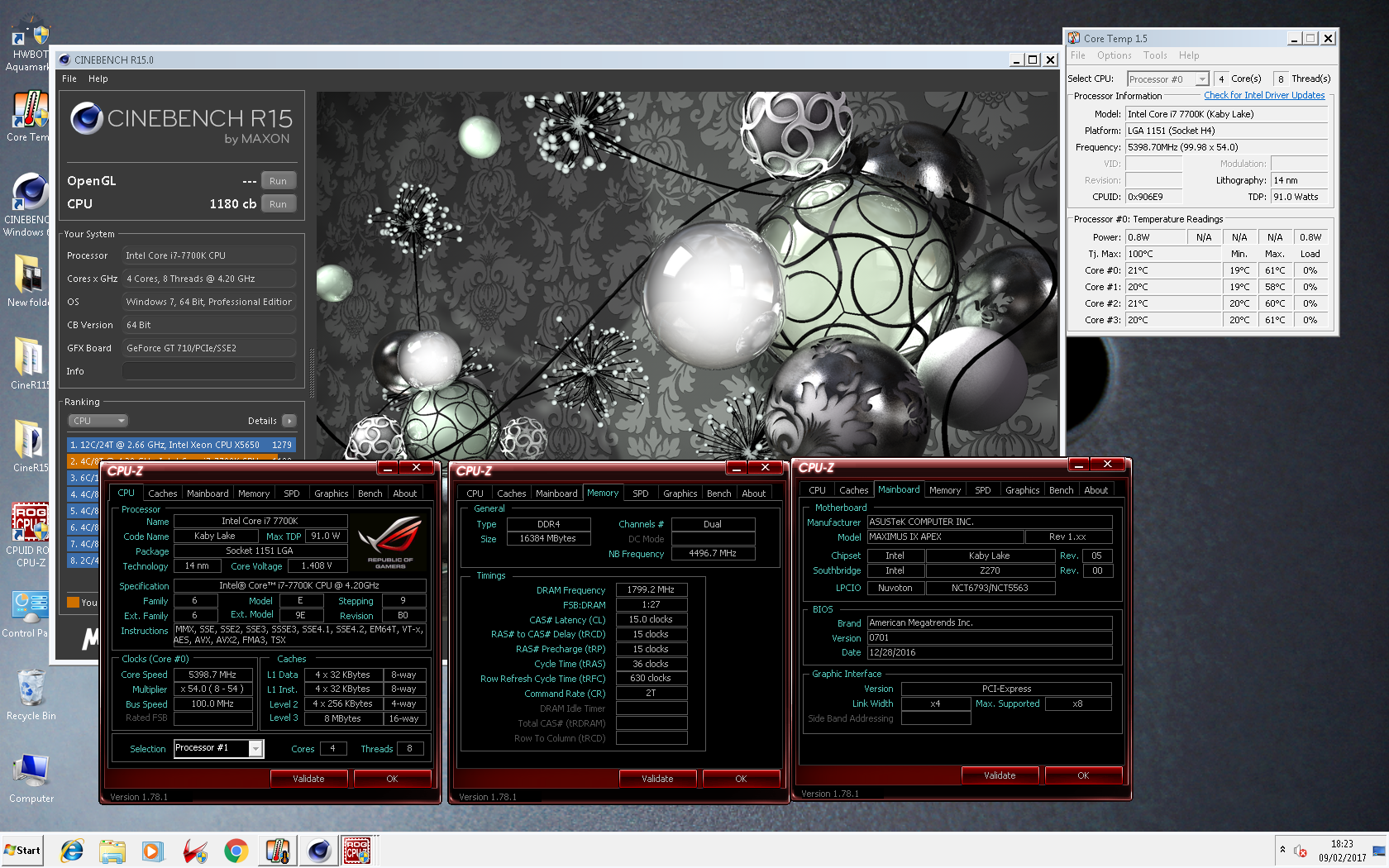

54_zpsjszyyzr8.png~original

Edited by nickolp1974
Link to comment
Share on other sites

Great chip man!

MIne requires a lot more voltage for the same, but very same pathern in difference each 100 MHz step for vcore.



I wish I could do 18C water, but wife won't accept that cold indoor temp, its more like 22C ambient, when I hit 25C, I lost everything as for OC :-/



By the way, my highest was 5460MHz @ 25C ambient, voltage was high, too high :)

Link to comment
Share on other sites

Great chip man!

MIne requires a lot more voltage for the same, but very same pathern in difference each 100 MHz step for vcore.



I wish I could do 18C water, but wife won't accept that cold indoor temp, its more like 22C ambient, when I hit 25C, I lost everything as for OC :-/



By the way, my highest was 5460MHz @ 25C ambient, voltage was high, too high :)



Its only an old cool box, a £20 pond pump and tap water.

Link to comment
Share on other sites

Where are the 7600k's?



L643G497 - Not Delidded - Stock VID 1.052v Stock Voltage - 1.136v

Ambient Custom Water - D5 - RX360 - M8 Impact



50/45 - 3600c15 - 1.232v

51/45 - 3600c15 - 1.296v

52/45 - 3600c15 - 1.36v

53/45 - 3600c15 - 1.44v

Edited by hotrod717
Link to comment
Share on other sites

Noooo man, dont tell me it :D...Because my 3rd 7700K is L643...



My test for simply OC I did with Windows 10, temp in my room 22C.

HW setup: Maximus IX Apex, AIO cooler Silverstone TD02 SLim

CPU and BIOS setup: manual voltage, CPU clock 5 GHz, HT on, Cache 4500 MHz, RAM 3600MHz, LLC5, no delid yet



ES 7700K 1.287V CinebenchR15 5000 MHz 1.325 V, max Cinebench 5100 MHz 1.45V

retail 7700K L641G639 1.168V Cinebench R15 5000 MHz 1.265V

Cinebench 5100 MHz at 1.345V AIO




add L643G202 batch, VID 1.152V

HW setup: Maximus IX Apex, AIO cooler Silverstone TD02 SLim

CPU and BIOS setup: manual voltage, CPU clock 5 GHz, HT on, Cache 4500 MHz, RAM 4000MHz c12, LLC5 with 1.24V




1.235 error


Edited by flanker
Link to comment
Share on other sites

  • Administrators
Where are the 7600k's?



L643G497 - Not Delidded - Stock VID 1.052v Stock Voltage - 1.136v

Ambient Custom Water - D5 - RX360 - M8 Impact



50/45 - 3600c15 - 1.232v

51/45 - 3600c15 - 1.296v

52/45 - 3600c15 - 1.36v

53/45 - 3600c15 - 1.44v



L642G171 - not delidded, VID Asrock MOCF 1,088v, Air cooling, CB15



50/45 -3866c12 - 1,22v

51/45 -3866c12 - 1,27v



L642G169 - not delidded, VID Asrock MOCF 1,072v, air cooling, CB15

50/45 -4000c12 - around 1,15v

53/48 -4000c12 - 1,29v

Edited by websmile
Link to comment
Share on other sites

L642G171 - not delidded, VID Asrock MOCF 1,088v, Air cooling, CB15



50/45 -3866c12 - 1,22v

51/45 -3866c12 - 1,27v



L642G169 - not delidded, VID Asrock MOCF 1,072v, air cooling, CB15



53/48 -4000c12 - 1,29v

That second one is a damn fine chip. Any chance we see ln2 results on that?Too bad As rock will not be making a z270 mocf. By the looks of it they felt they didn't need too.
Link to comment
Share on other sites

batch L701D042, SN:0316 no delid

VID: 1.136 V



Maximus IX Apex, AIO cooling Silverstone TD02 Slim






Cinebench R15 5000MHz/4500MHz/3600MHz DRAM, 1.245V Vcore




5150 MHz 1.38V, 5200 MHz BSOD (voltage range 1.4-1.44V, seems too hot :) )


Edited by flanker
Link to comment
Share on other sites

OK last two tested. The same testing setup, no delided CPUs. Ambient 22 C.



batch L701D042, SN:0521 VID: 1.232 V ("wow" :P )




5 GHz frozed, BSOD... Voltage range up to 1.44V Vcore



Max Cinebench R15 4.9 GHz 1.355V as minimum stable for R15




batch L701D033, VID: 1.168 V






Cinebench R15 5000/4500/3600RAM 1.29V, LLC5




AIDA stress test




Cinebench R15 5100 MHz 1.395V, 5150 MHz BSOD in half of rendering


Link to comment
Share on other sites

Hello there,

Picked my 7700k and Asus IX Hero Z270

Batch L643G207

Everything is auto now.

Didn't test overclock yet.

Good batch?



VID 1.168v



Possibly, use thread settings of x50 on the core, x45cache and 3600mems all auto with LLC level 5 and test lowest voltage required to run cinebenchR15 then try 52/45/3600

Link to comment
Share on other sites

Thanks Nickolp and shar. I will do tests sometime hopefully this week.

I have Asus Maximus IX Hero Z270

And I honestly don't intend to delid the CPU, too risky for me and voids my warranty. I also use Noctua D15S with one fan in middle and not water.



1. Does VID in BIOS mean anything?

2. Should I disable XMP and reinput my RAM sticks 16-18-18-3200 1.35v manually for better OC?

3. Should I disable Asus Multicore Enhancments and switch to manual sync all cores for better control and stability?

4. Manual voltage for testing, yes? and what is a good manual value for 5GHz as a starter? 1.20v?

Thanks guys again.

Edited by mahanddeem
Link to comment
Share on other sites

And with mocf should be even lower. There are differences in voltage even between 2 Apex,one may be lower vcore and better compatibility with memory which sucks.



All the cpu's for sale in hwbot area are tested with mocf,imagine the surprise of someone who has M8G at home.
