MSI Z77 MPower

[oc_windforce]

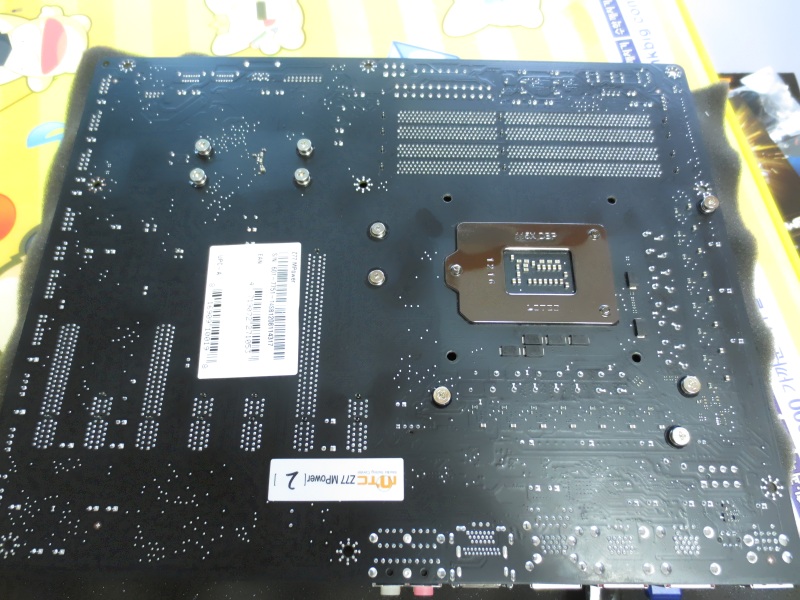

MPower Layout Image shot

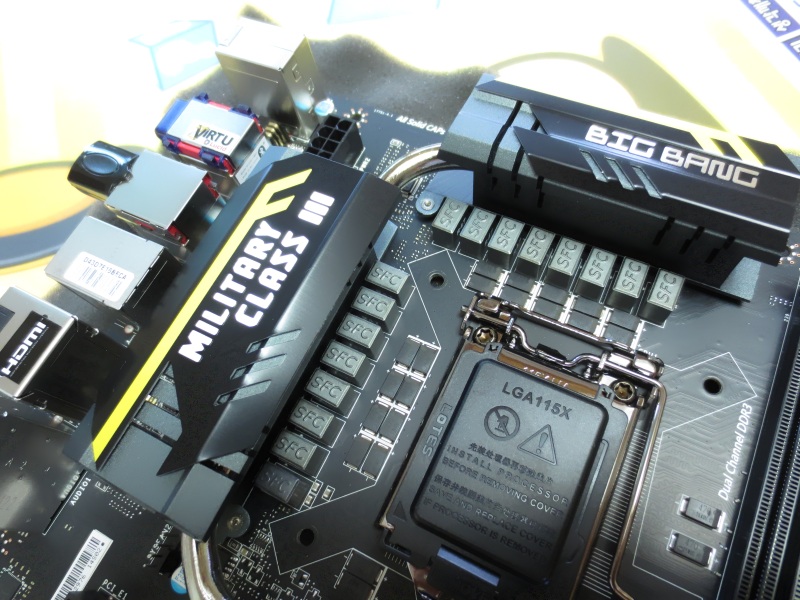

Dull Luster Black PCB & New hitsink design(yellow point)



12 phase Power Block











Multi-BIOS





On-Board Power&Reset&OCGENIE Switch





V-Check Point





DrMOS Alarm RED LED & 12 Phase Power LED









PCIe3.0 (16/0/0) (8/8/0) (8/4/4)

PCIe2.0 (16/0/no support) (8/8/no support)





Back Panel (New Hardware : Bluetooth,WiFi Module)









Debug LED

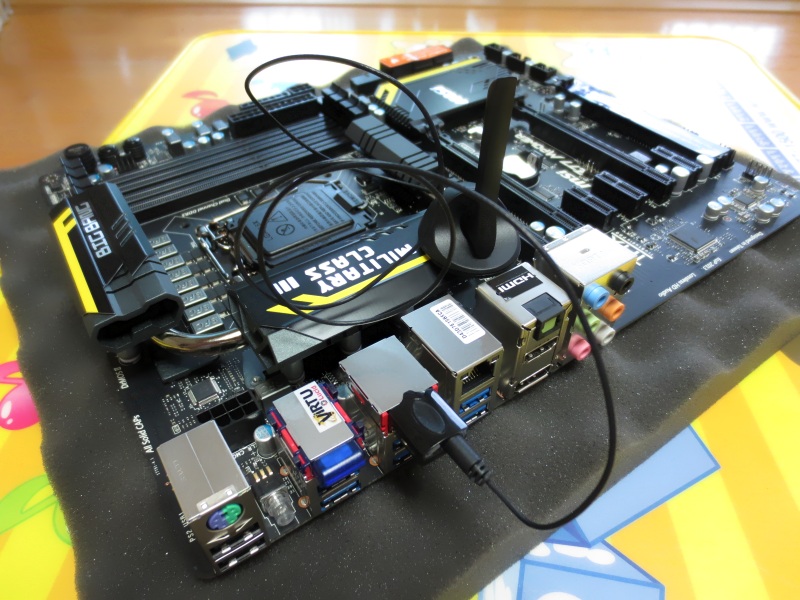

WiFi Antenna









OC BIOS Screen



















System image



















System Rig.

CPU : 3770K Retail

M'b : MSI Z77 MPower

Memory : GSKILL TridentX DDR2600 CL10-12-12-21 4G*2

VGA: MSI 680 Lighting

HDD: intel SSD 330 120G

Power : PC-Powercooling 1K

Cooling : Air [bARAM 120mm]





NDA 8/28.....

Edited August 26, 2012 by oc_windforce

[Vivi]

Dude nice!



That board is super good looking .

[Christian Ney]

PCB is very clean, I don't really like the BIOS but it's a matter of taste

[Massman]

Dude nice!



That board is super good looking .



Agreeing with that! Clean PCB = :ws:



Looking forward to the (real) OC results!

[K404]

Another comment on how clean the PCB is. Good lookin board!

[TaPaKaH]

looks decent, but I'd like the heatsinks to be actually heatsinks

[jurek]

2 questions



1. why are there 2 grounds i v check point?

2. where is that radiator cpu from? what happened with oryginal ventilator? is the one You have now better?

[neliz]

looks decent, but I'd like the heatsinks to be actually heatsinks



I guess you prefer bullets?

[Crabby]

No more bullets please! The pcb does look fantastic.

[El Gappo]

One sexy looking board, bet it's a wizz to insulate.



I guess you prefer bullets?



Bahaha

[sin0822]

looks nice



Edit: i really like its color matching with the MSI GPUs, this looks a lot better than the asrock one.

Edited August 15, 2012 by sin0822

[oc_windforce]

AVEXIR Memory With Z77 MPower















AVEXIR Memory working movie

Edited August 26, 2012 by oc_windforce

[TaPaKaH]

I had a go with this board during Campus Party. Promised not to say that it has issues running PSC and BBSE at frequencies above 1200MHz, so you'll have wait until 28th to hear it

[l0ud_sil3nc3]

I had a go with this board during Campus Party. Promised not to say that it has issues running PSC and BBSE at frequencies above 1200MHz, so you'll have wait until 28th to hear it



good heads up lol

[oc_windforce]

My bench open



M'b : MSI Z77 MPower

Memory : GSKILL TridentX DDR2600 -12-12-21 4G*2

AVEXIR 4GB x4 DDR3-2666C11 1.65V Memory(AVD3U26661104G-4CM)

VGA: MSI 680 Lighting

HDD: intel SSD 330 120G

Power : PC-Powercooling 1K

Cooling : Air [bARAM 120mm]



5G OverClock



TridentX DDR2600 CL10 Over DDR2800

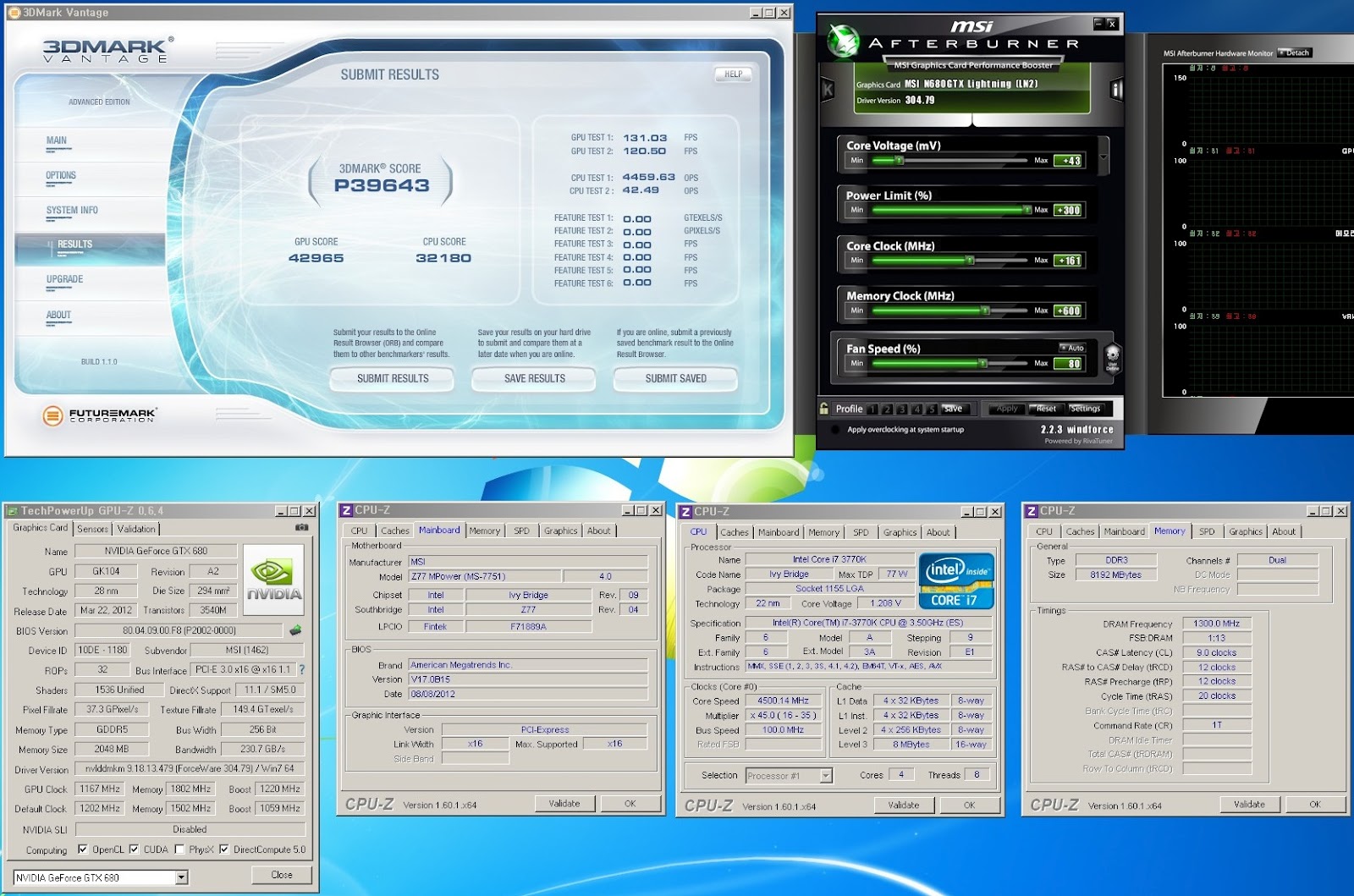

3DMark Vantage



3DMark11 #1



3DMark11 #2



AVEXIR 4GB x4 DDR3-2666C11 Full Bank(16GByte) OverClock

CL11-13-13-35 2T DDR2760 Super-pi 32M Pass



AVEXIR 4GB x4 DDR3-2666C11 Full Bank(16GByte) OverClock

CL11-13-13-35 2T DDR2800 Super-pi 1M Pass



AVEXIR 4GB x4 DDR3-2666C11 Full Bank(16GByte) OverClock

CL12-14-13-25 2T DDR2840 Super-pi 32M Pass

Edited August 27, 2012 by oc_windforce

[Xtreme Addict]

Ln2 results please

[oc_windforce]

Ln2 results please



Memory test by MTC Emperor



LN2 test by alvinkenzo





Mpower Movie

Lead actor : alvinkenzo :D:D

[Vladutz20]

Nice mb.

[K404]

Is it true that this board is limited to 1.80vCore and it suffers from droop?

[Booj]

I haven't checked for vdroop but I think 2.15v is enough to kill any chip heh



[K404]

Good to see Thankyou. I read the vCore controller is only rated to 1.80v?



http://www.overclock.net/t/1309099/msi-z77-m-power-big-bang-testing-with-cl3p20







......annnddddd....when will the 3DMark01 tweak make it into MPower BIOS?

Edited September 25, 2012 by K404

[K404]

Any info on these questions?

[oc_windforce]

My Mpower LN2 frist try



GD65 & MAXIMUS-G with the same CPU had a CB, but does not happen Mpower

And Clock was a bit rise



Super-pi 32M MAX (Same CPU)

GD65 & MAXIMUS-G 6.600G

Mpower MAX 6.668G













http://valid.canardpc.com/show_oc.php?id=2542935



PiFast 6.66G

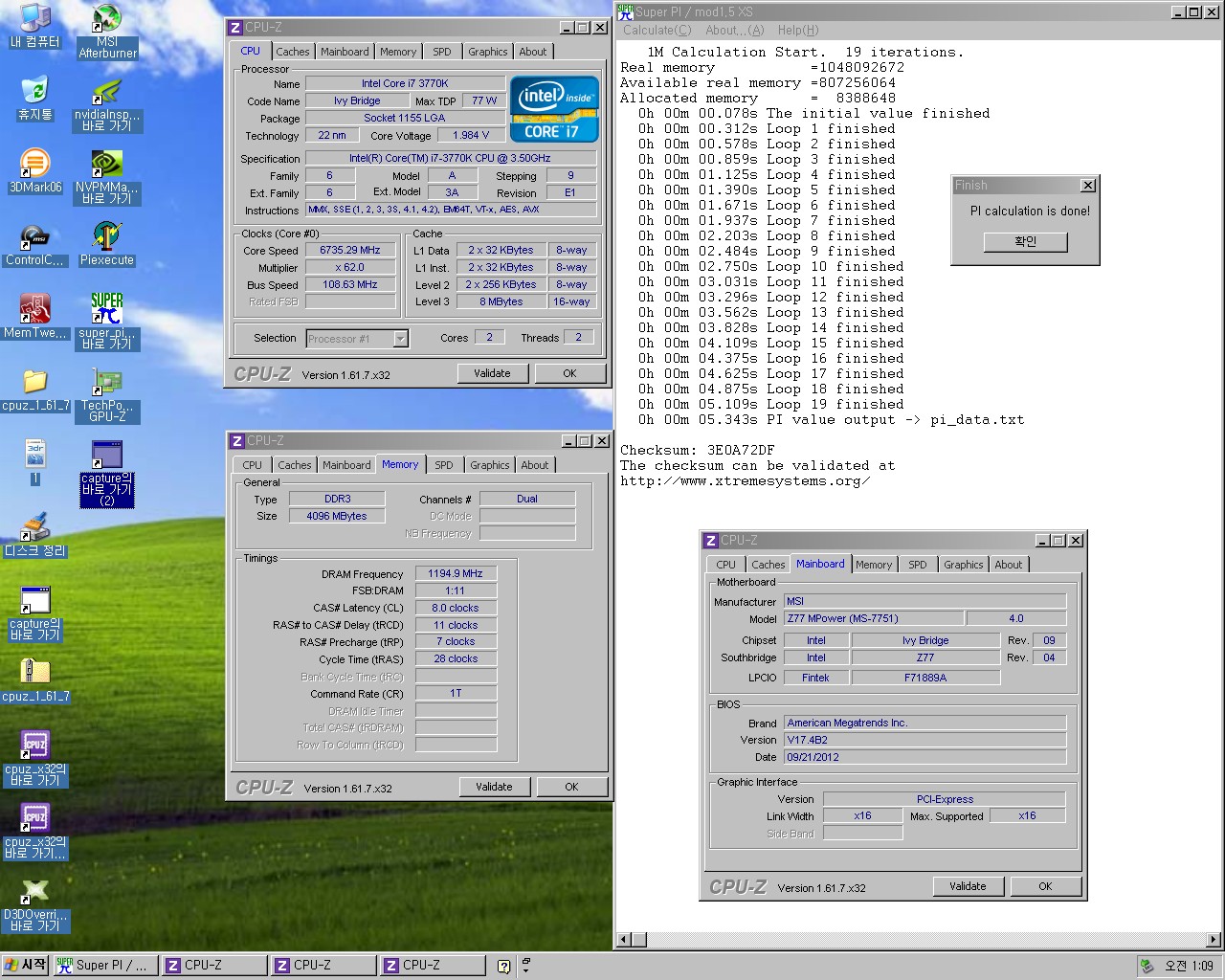

Super-pi 1M 6.73G



Super-pi 32M 6.66G



3DMark06





Edited October 14, 2012 by oc_windforce

[T0lsty]

tried this board too, but with 17.3 bios - as result both bioses are corrupted and mb don`t boot .



but i notised that it clocks cpu good. but not ram . 8-12-8 2600 / psc are unbootable(( .

[oc_windforce]

tried this board too, but with 17.3 bios - as result both bioses are corrupted and mb don`t boot .



but i notised that it clocks cpu good. but not ram . 8-12-8 2600 / psc are unbootable(( .



in my case ..

2/4 slot.. more than 1300 by 1t is impossible. but 1/3 slot.. 1t is possible
